Stock had to move between three levels on pallet trucks, several hundred times a day, without damage to doors or cabin.
Industrial

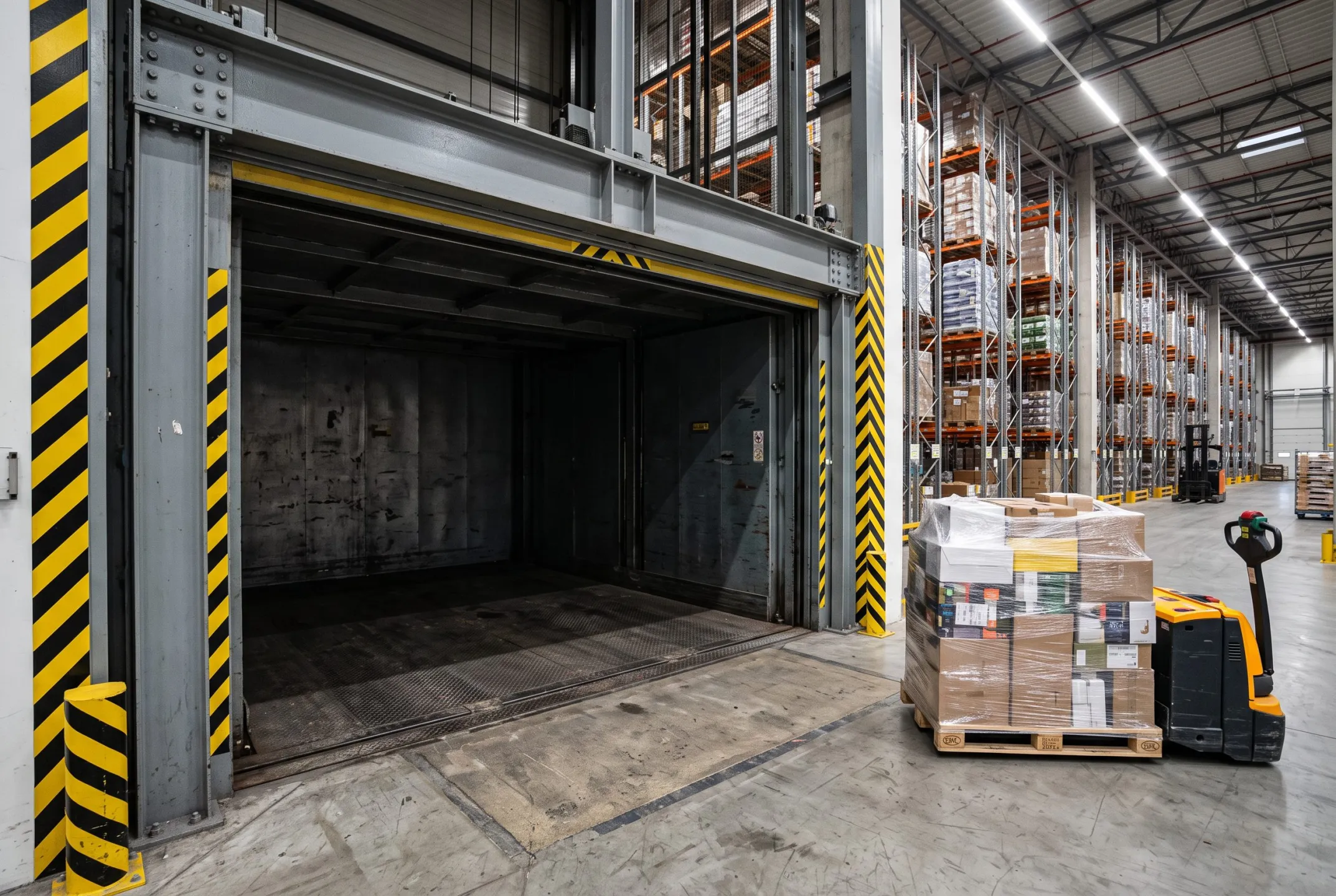

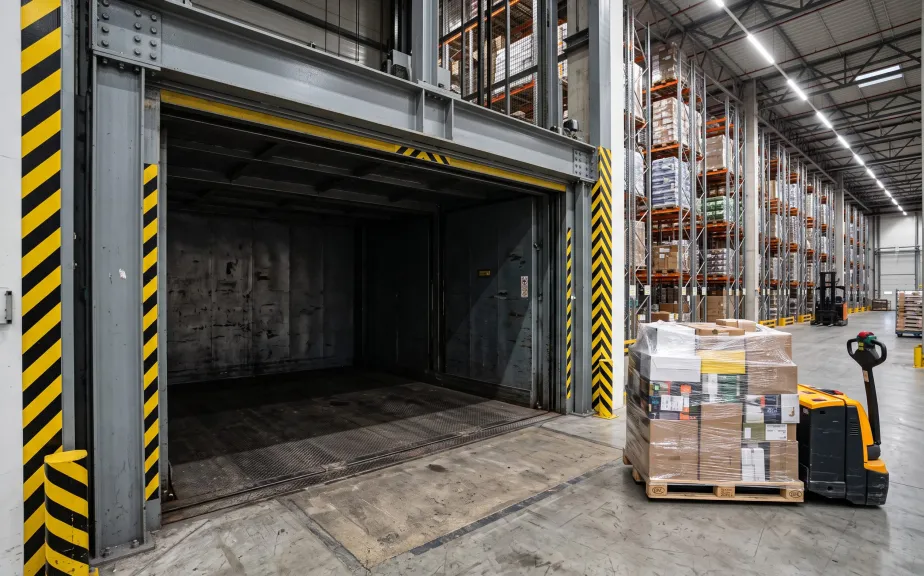

3,000 kg goods lift, Marsa logistics warehouse
A heavy-duty hydraulic goods lift sized for loaded pallet trucks, linking three storage levels.
The challenge
Our solution

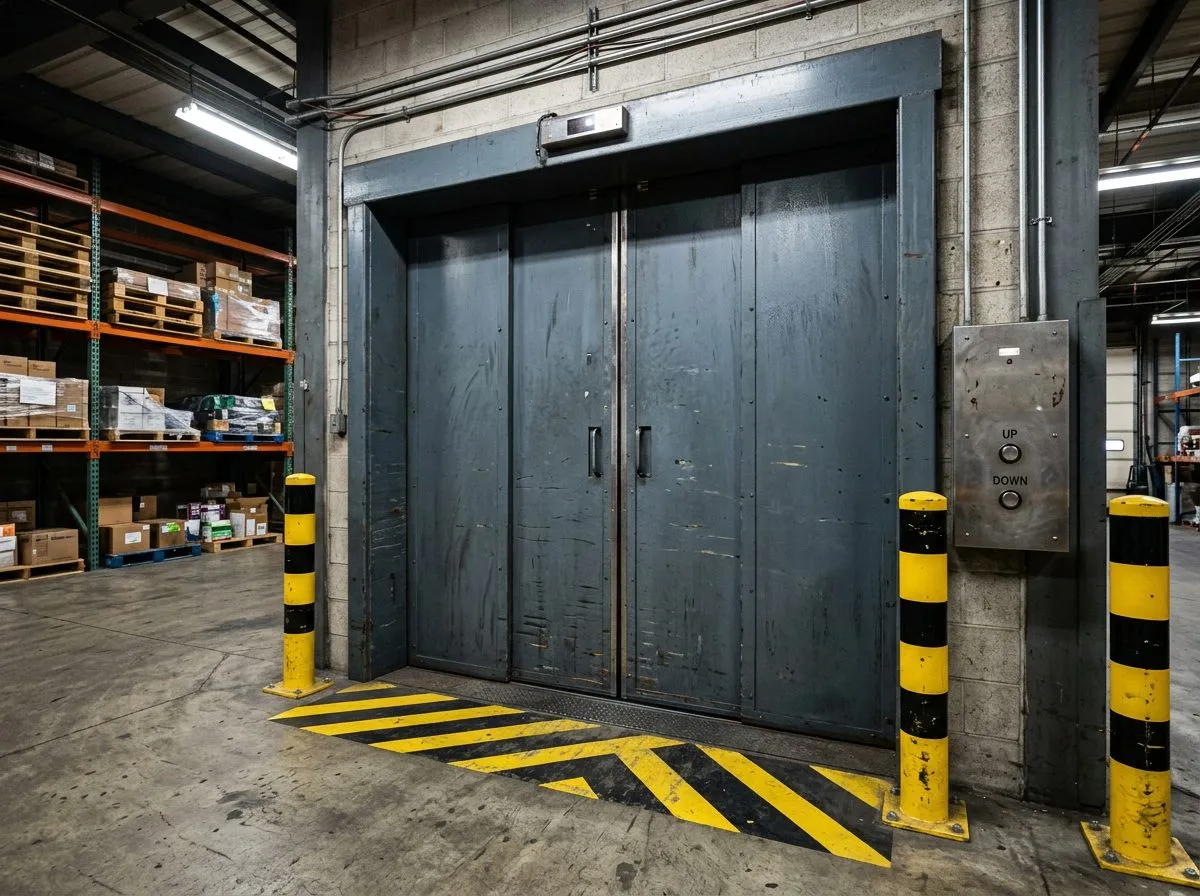

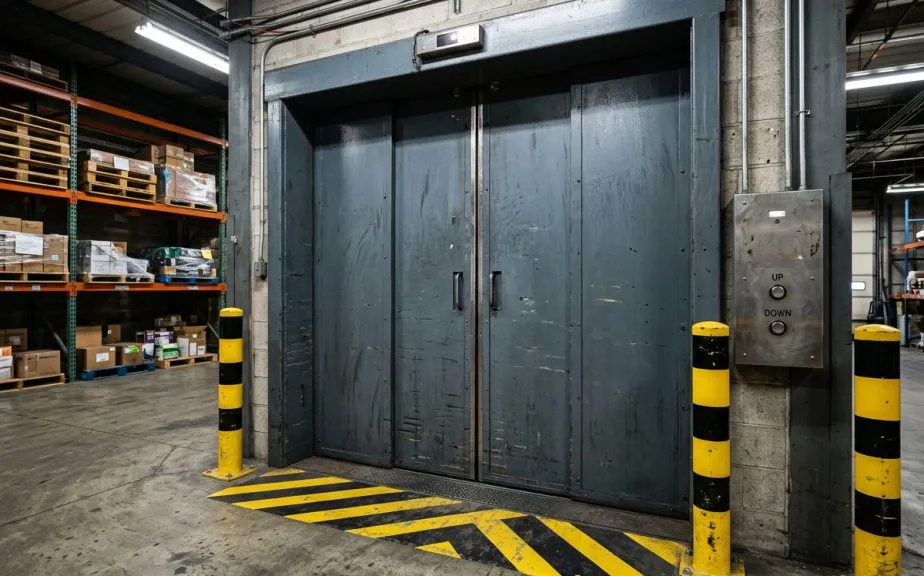

A 3,000 kg hydraulic goods lift with a reinforced chequer-plate floor, heavy-duty bi-parting doors and impact protection. Controls were placed for operators on pallet trucks.
Technical specifications
- Lift type
- Hydraulic goods lift
- Rated load
- 3,000 kg
- Speed
- 0.25 m/s
- Stops
- 3
- Travel
- 9.0 m
- Cabin
- 2,200 × 3,000 mm, chequer-plate floor
- Doors
- Heavy-duty bi-parting
- Standards
- EN 81-20, CE marked
- Registration
- OHSA
Scope of work
- Load and traffic assessment
- Pit and shaft coordination
- Goods lift installation
- Operator training
- Preventive maintenance plan
