The palazzo is a scheduled building. The lift had to be reversible, visually light, and installed without touching the historic stone vaults — while the hotel stayed open.
Hospitality
Glazed lift tower, Valletta palazzo hotel

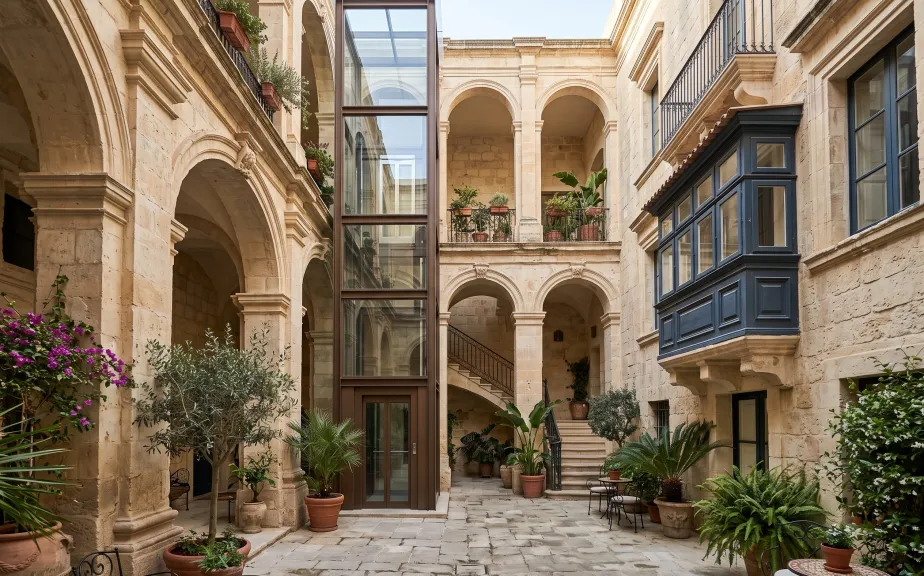

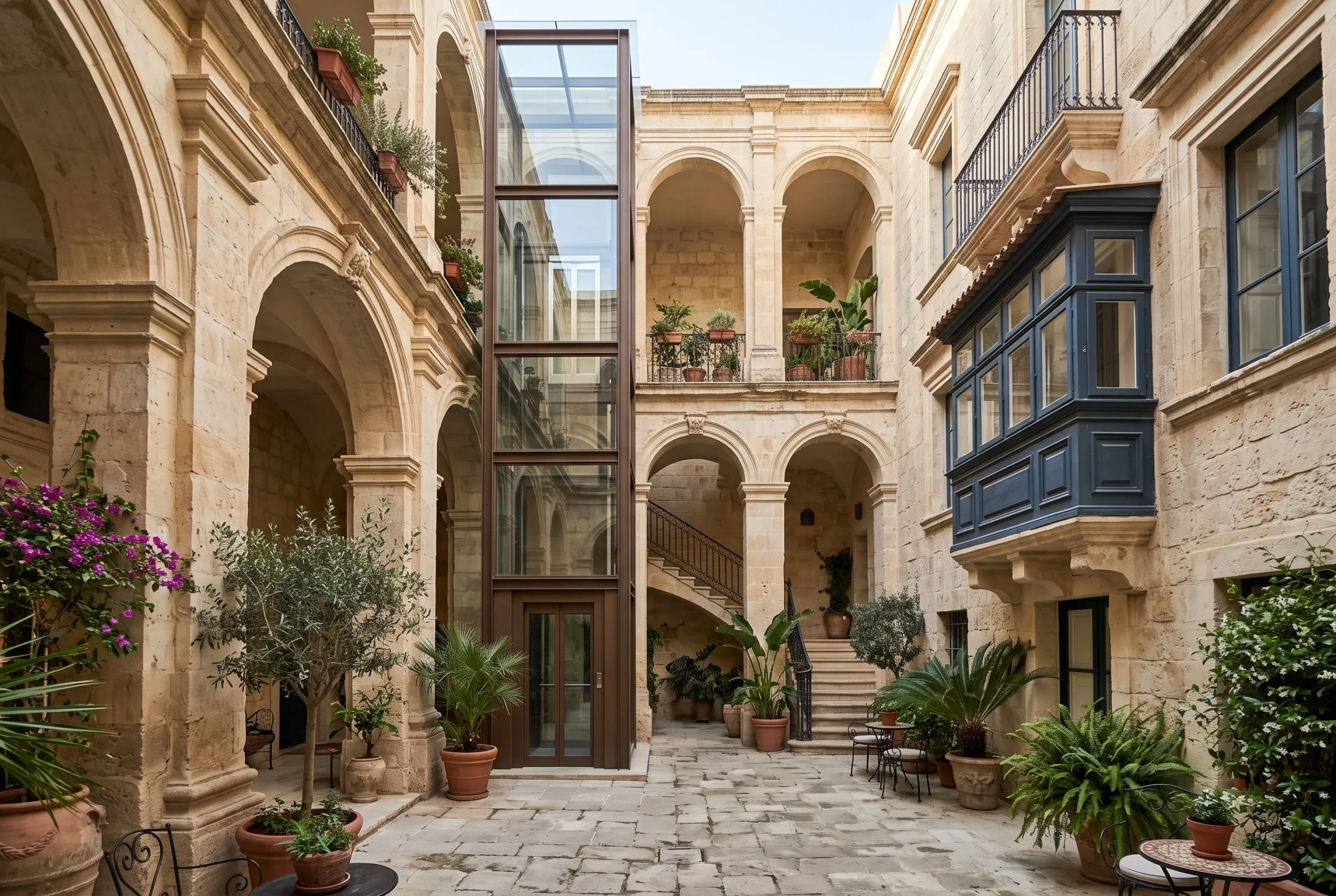

A fully glazed Project Elegance lift tower inserted into the courtyard of a restored baroque palazzo, now a boutique hotel.
The challenge
Our solution
A free-standing, fully glazed tower with slim bronze-finished profiles sits in the courtyard and connects to the galleries at each level. A hydraulic drive kept the headroom low, and all work was coordinated with the heritage authorities and the hotel’s booking calendar.
Technical specifications
- Lift type
- Project Elegance, hydraulic
- Rated load
- 450 kg / 6 persons
- Speed
- 0.63 m/s
- Stops / entrances
- 4 / 4
- Travel
- 12.4 m
- Doors
- Automatic centre-opening, bronze finish

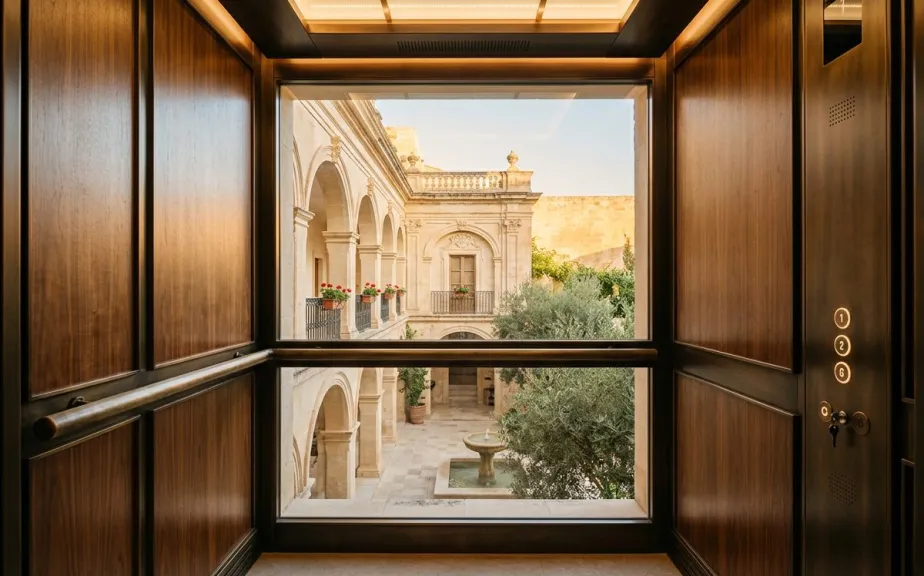

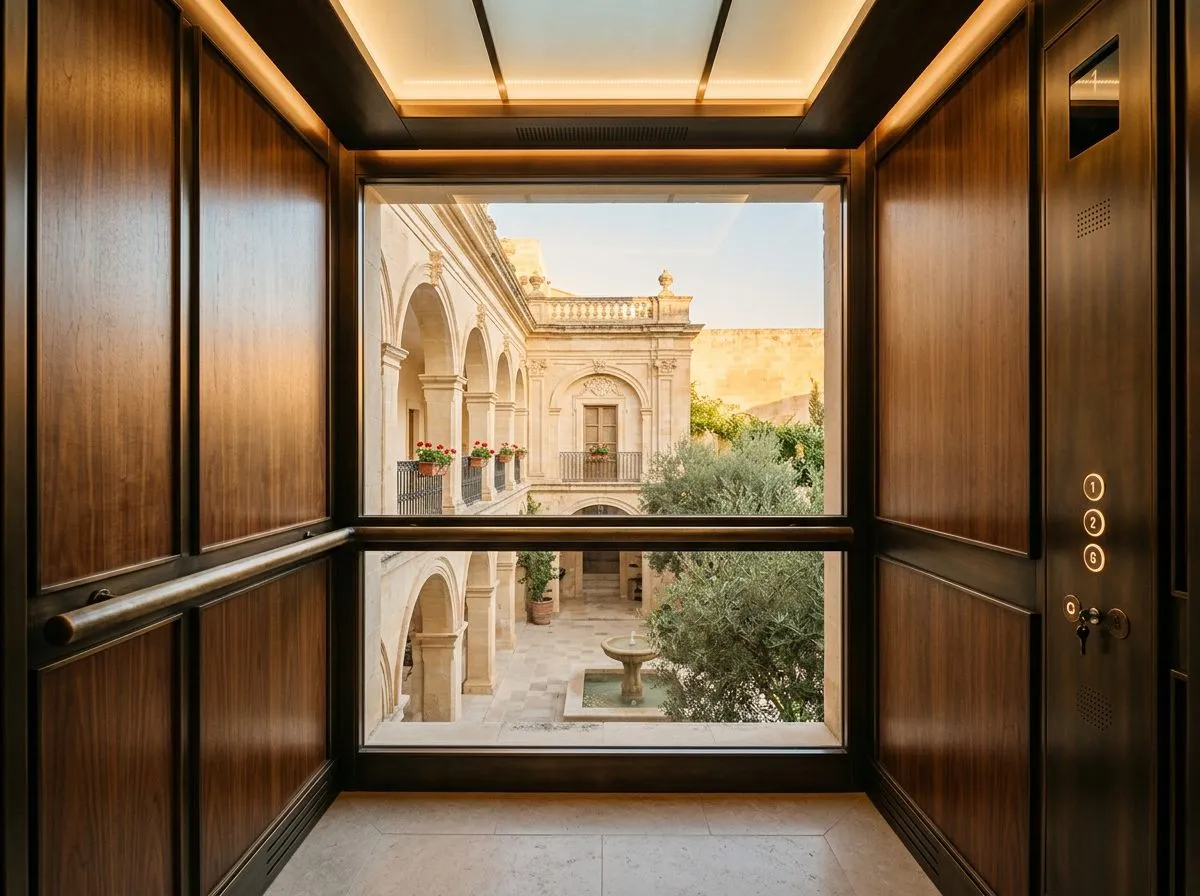

- Cabin
- Walnut veneer, bronze trim, glass
- Structure
- Powder-coated steel, full glazing
- Standards
- EN 81-20 / EN 81-50, CE marked
- Registration
- OHSA
Scope of work
- Heritage-sensitive design
- Coordination with heritage authorities
- Free-standing glazed tower
- Hydraulic lift installation
- Phased works around hotel operations
- Maintenance contract
Client feedback
What the client says
Installing a lift in a listed palazzo while staying open to guests was never going to be simple. Topserv planned every stage around our operations and the result looks as if it has always been part of the building.
