The building had no lift and no space for an internal shaft. Any addition had to respect the façade, withstand salt-laden sea air and be installed while residents continued to live in the building.
Residential

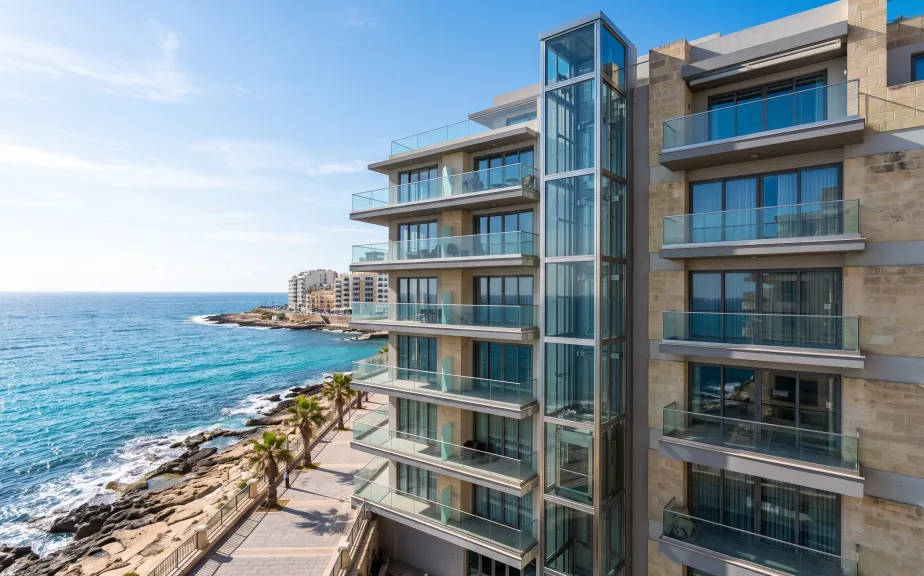

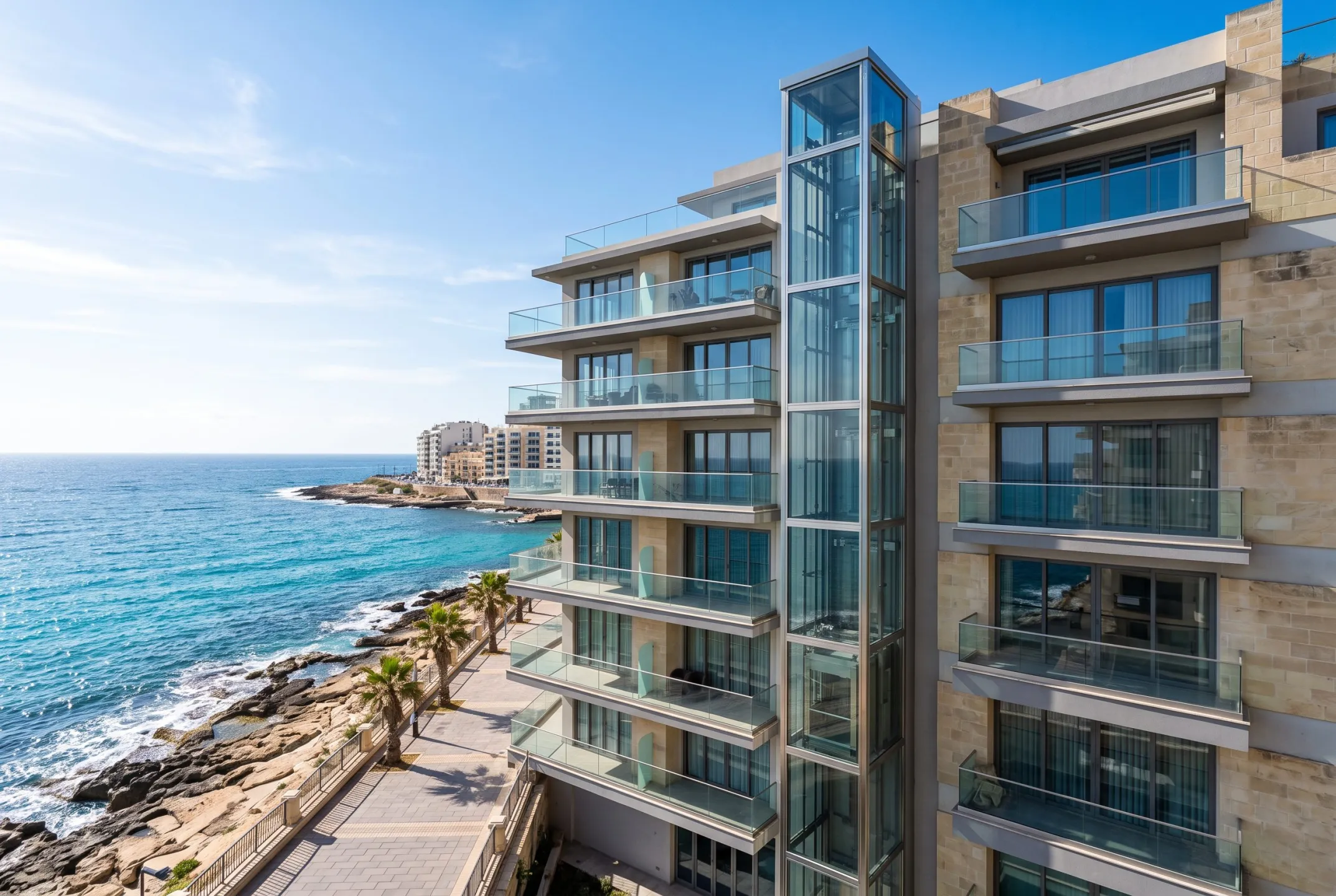

Panoramic glass lift, Sliema seafront residence

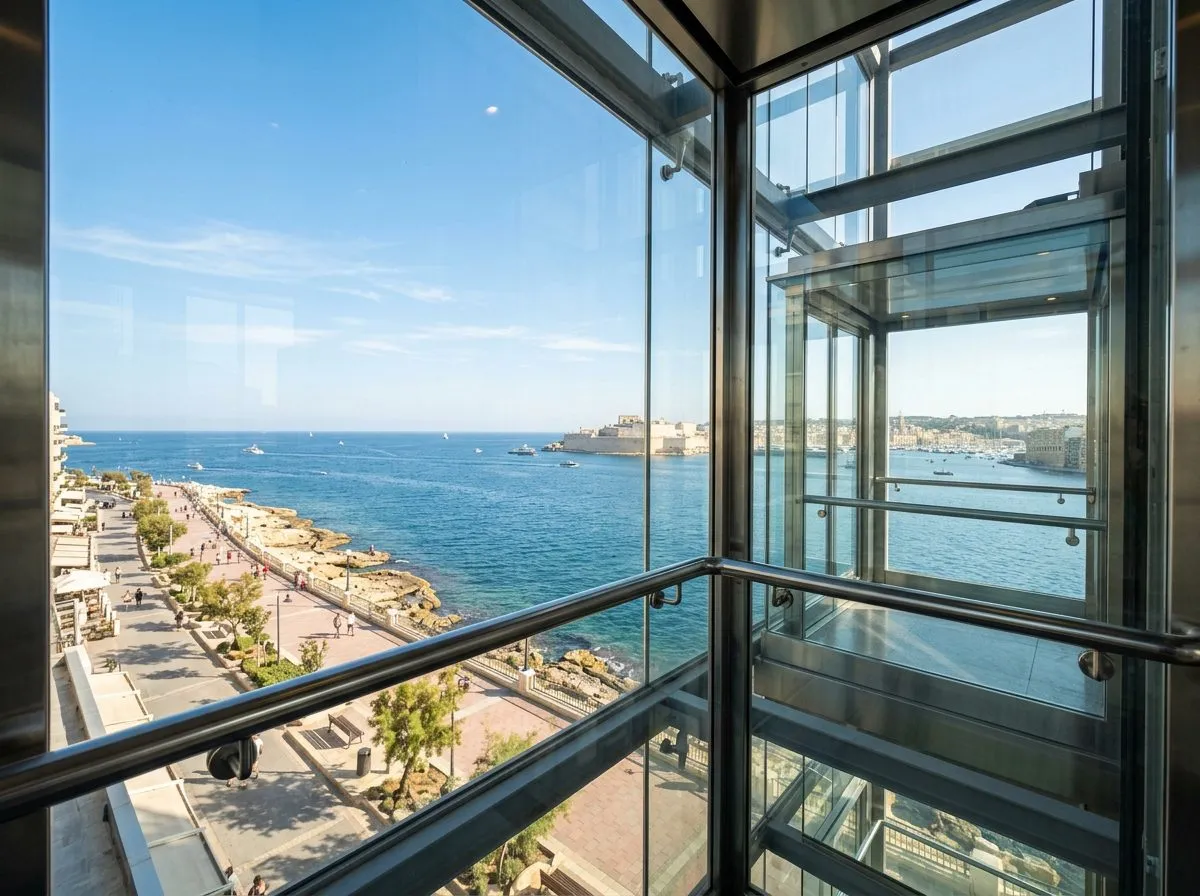

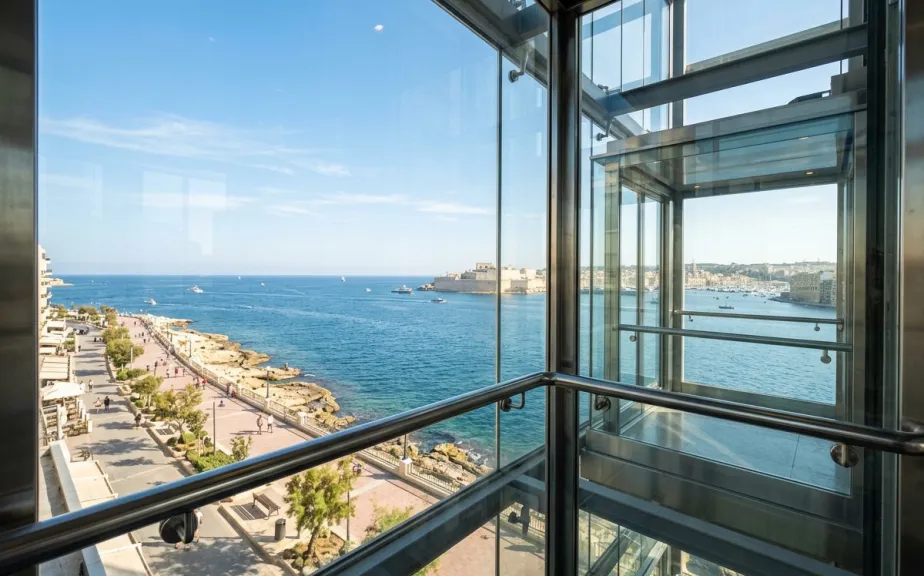

An external panoramic lift added to a seven-storey seafront building, giving every apartment step-free access and sea views on the way up.
The challenge
Our solution
We designed an external, self-supporting steel and glass shaft on the side elevation, with a machine-room-less traction lift from Kleemann. All steelwork received an anti-corrosive marine coating, and the installation was scheduled floor by floor to keep disruption to a minimum.
Technical specifications
- Lift type
- Panoramic MRL traction
- Manufacturer
- Kleemann
- Rated load
- 630 kg / 8 persons
- Speed
- 1.0 m/s
- Stops / entrances
- 7 / 7
- Travel
- 19.6 m
- Drive
- Gearless, VVVF
- Doors
- Automatic, glazed telescopic
- Cabin
- Laminated glass, stainless frame
- Standards
- EN 81-20 / EN 81-50, CE marked
- Registration
- MCCAA
Scope of work
- Site survey and structural coordination
- Design, drawings and permit support
- Steel shaft fabrication with marine-grade coating

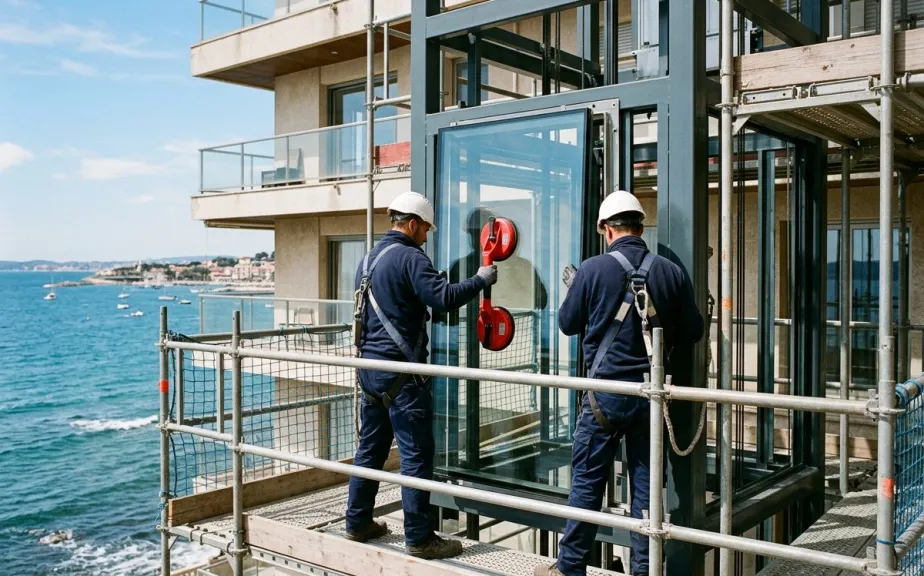

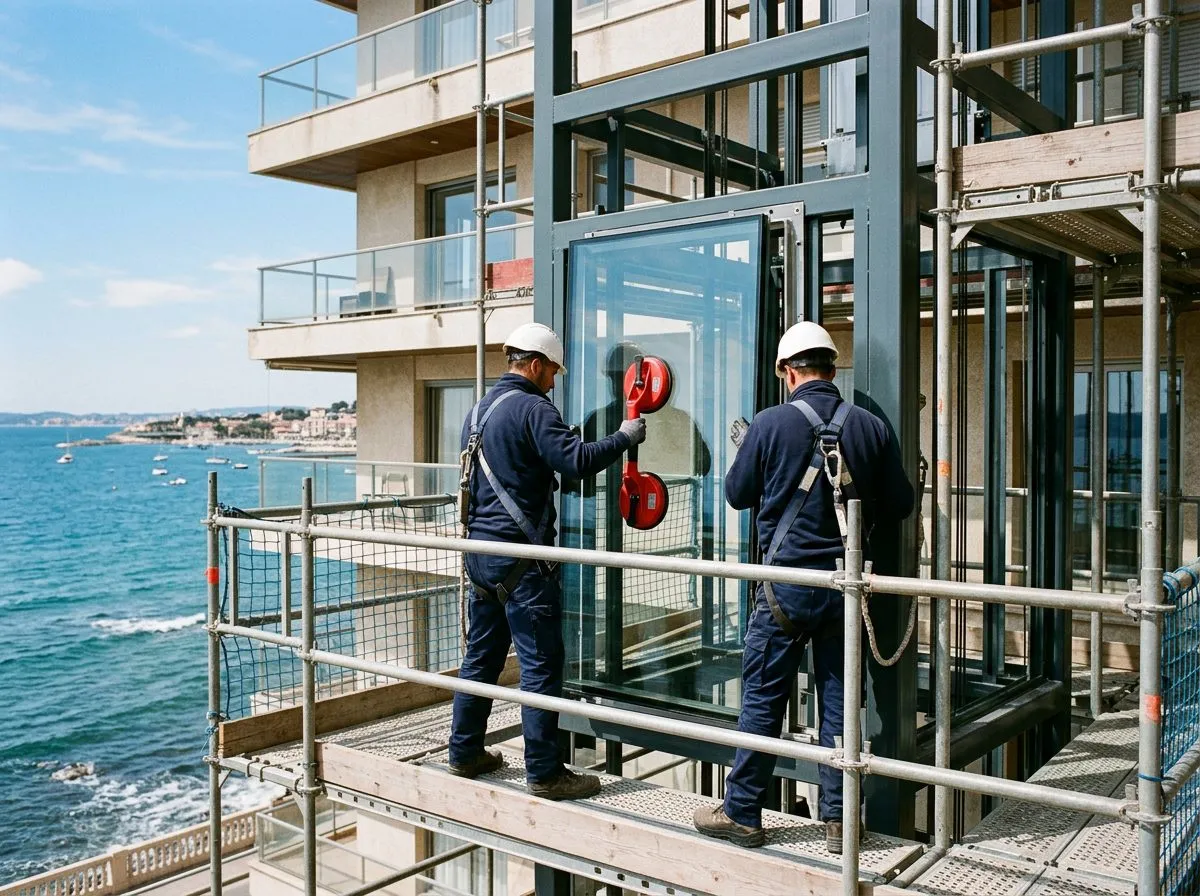

- Lift installation and glazing
- Testing and notified-body inspection
- Handover and 24/7 maintenance contract
Client feedback
What the client says
From the first site visit to the handover, the Topserv team was clear, punctual and tidy. The panoramic lift has transformed the way we use the building — and the view on the way up is a bonus.
